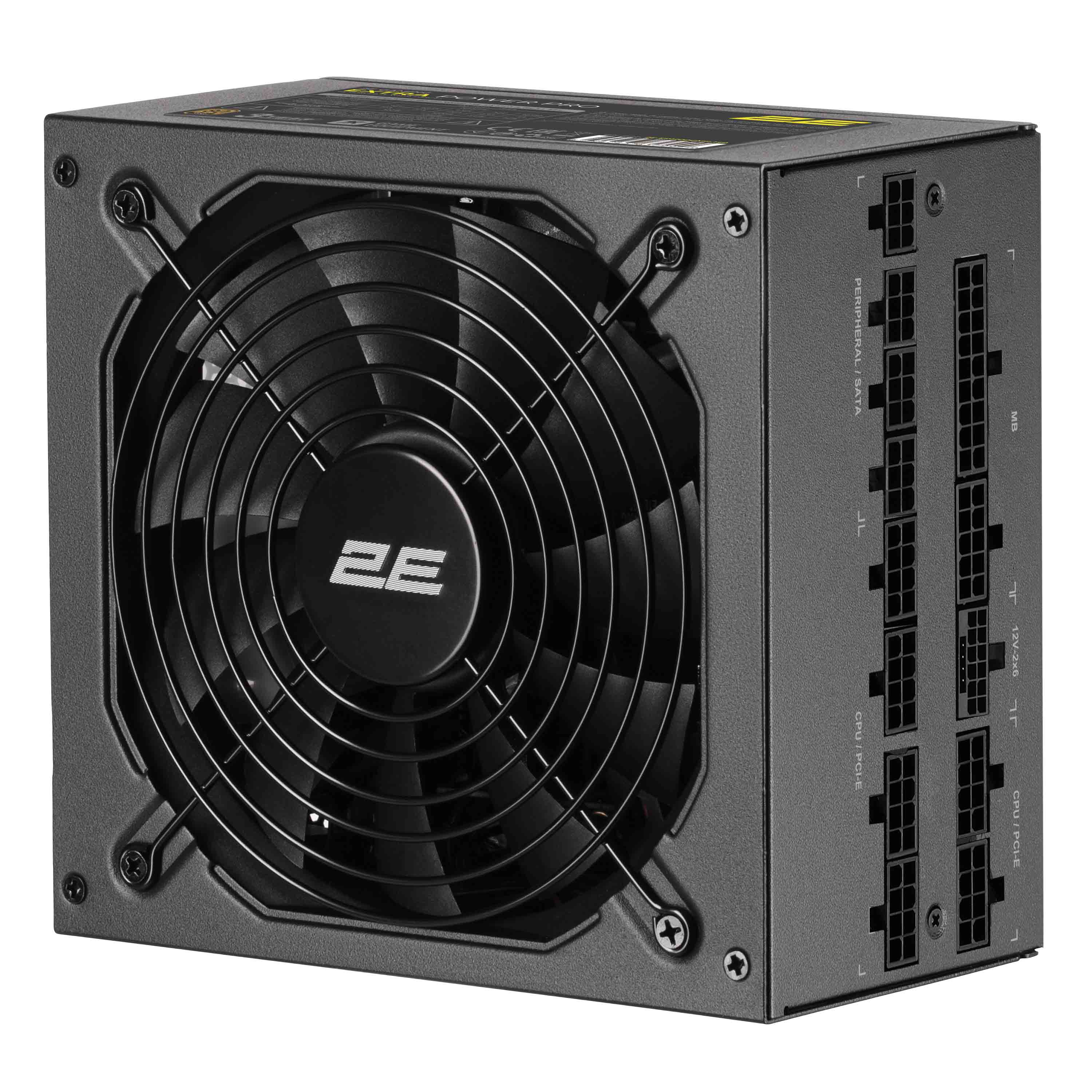

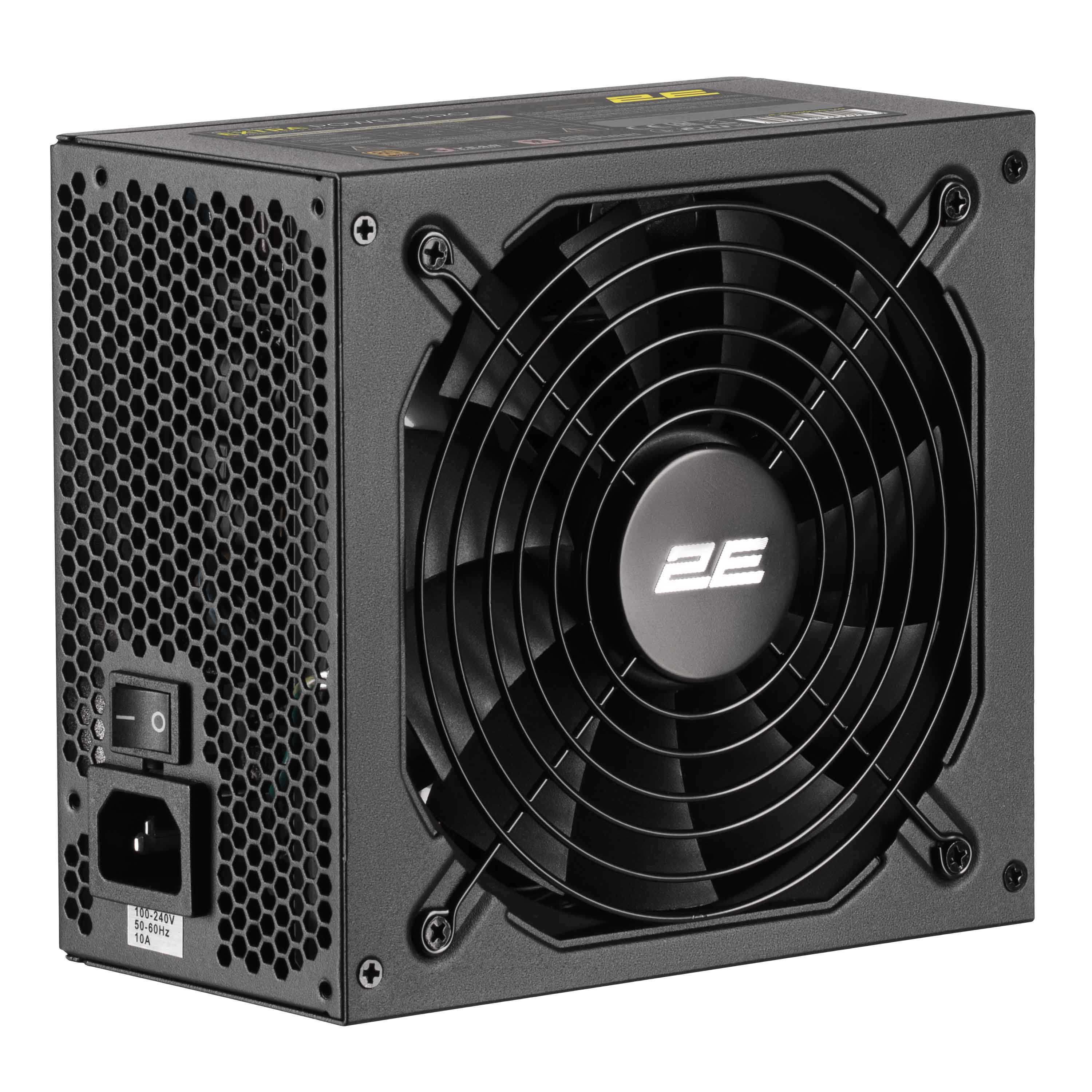

2E Gaming Power Supply Extra Power Pro EP1200GMII-140

SKU: 2E-EP1200GMII-140

Out of stock

Where to Buy

Product description

2E GAMING Extra Power Pro modular power supplies are designed for high-performance computer systems, including workstations, gaming PCs, and industrial PCs that handle demanding tasks. State-of-the-art circuit design with DC-DC converters and a powerful +12V output rail, efficiency >88–90%, 80 Plus Gold certification, reliable components, and the use of overheat-resistant Taiwanese capacitors guarantee stable power to PC components and energy savings during operation.

Download

Manuals & Software

Compare
Specifications

Specifications

Key Features

Type

for PC

Application

gaming/mining

Power

Power

1200 W

Form Factor

ATX 12V 3.1v, Gen 5.1

Specification

Type PFC

active
Number of fans

1

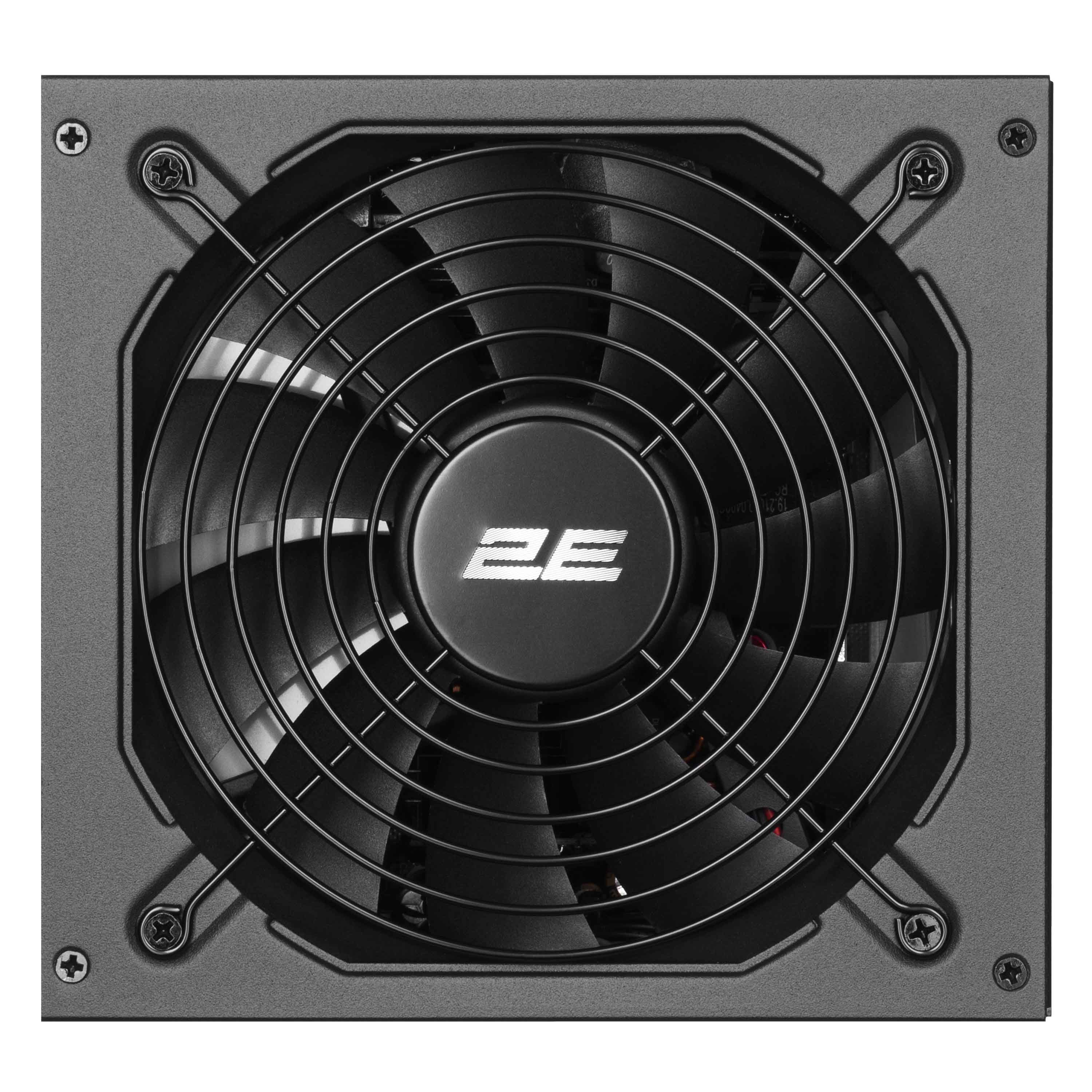

Fan diameter

140 mm
Еfficiency

90 %
80 PLUS Certificate

gold

Input voltage

100 - 240 В
Input current

15 - 8 А
Frequency

50 - 60 Гц

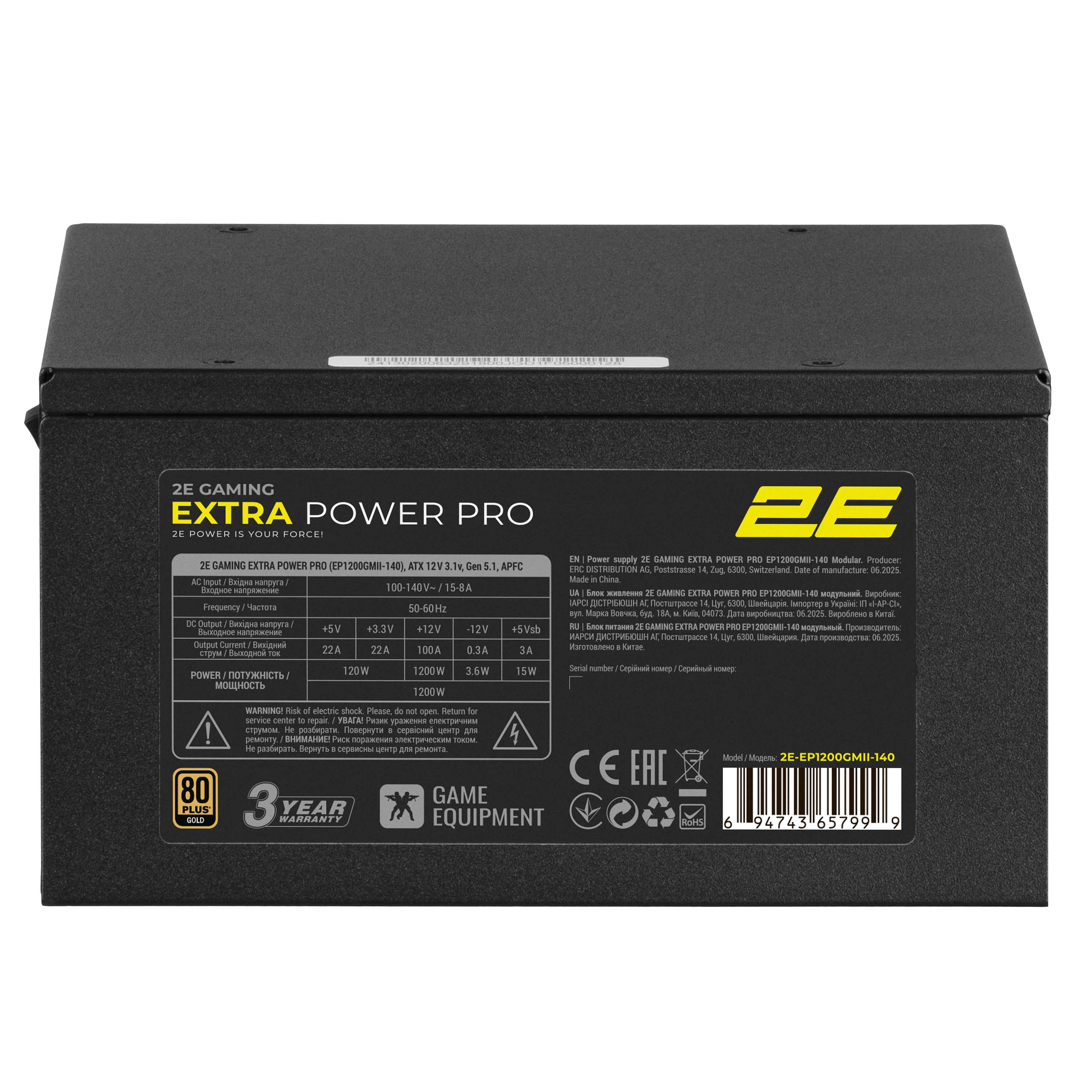

Combined load

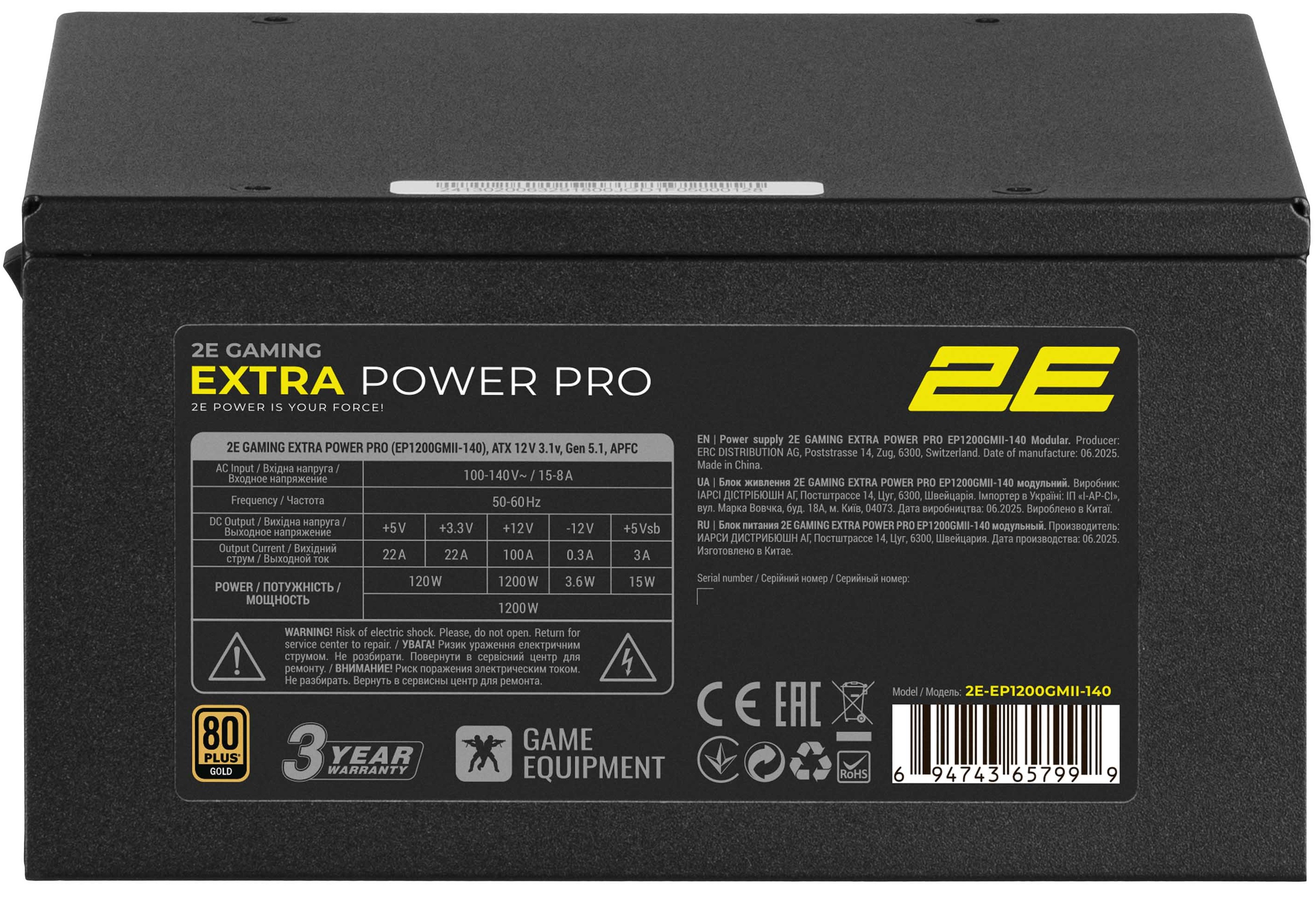

3,3V 22A; +5V 22A; +12V 100A, -12V 0,3A; +5VSB 3A

Power connectors

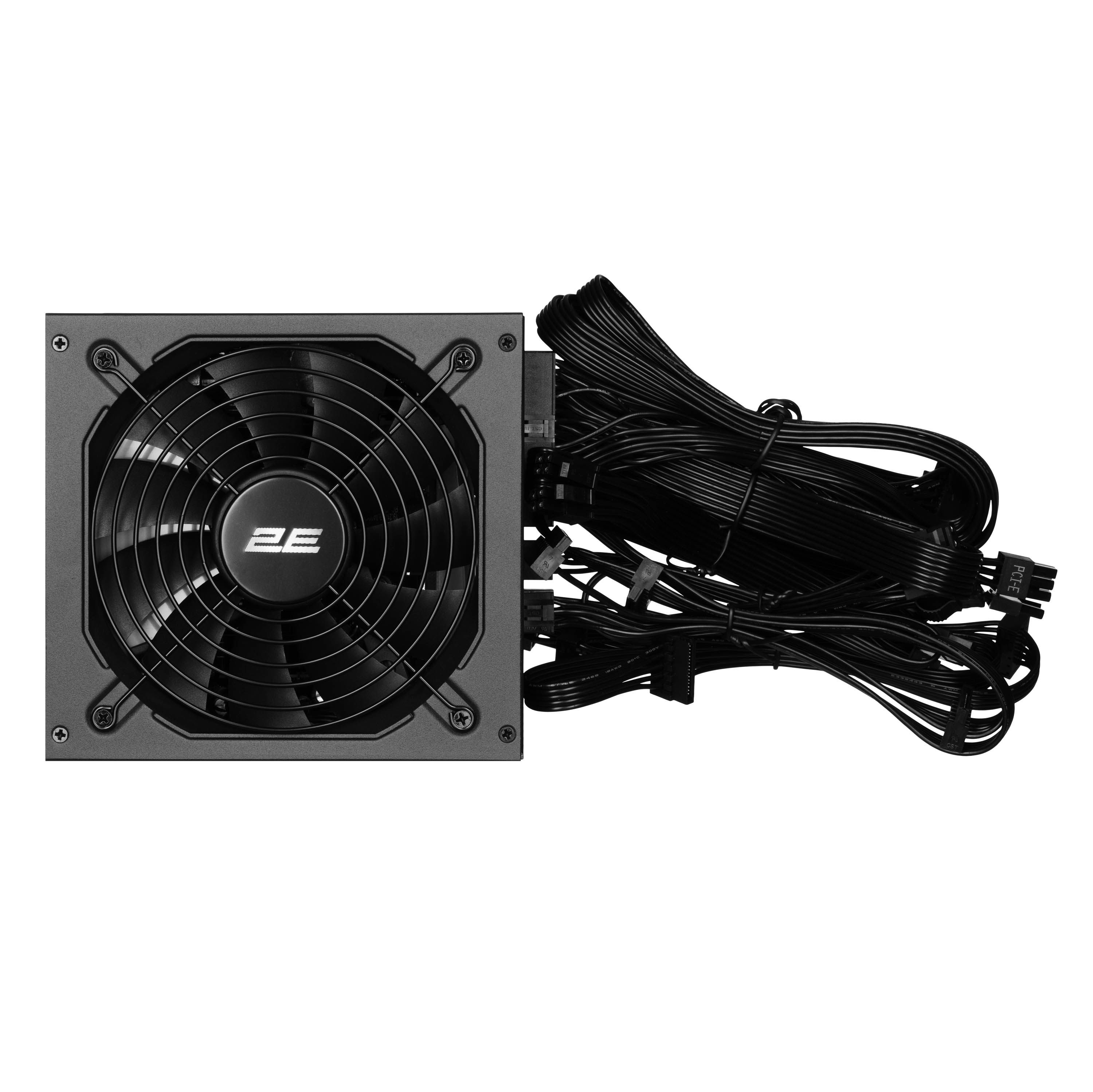

Modular cabling

✔️

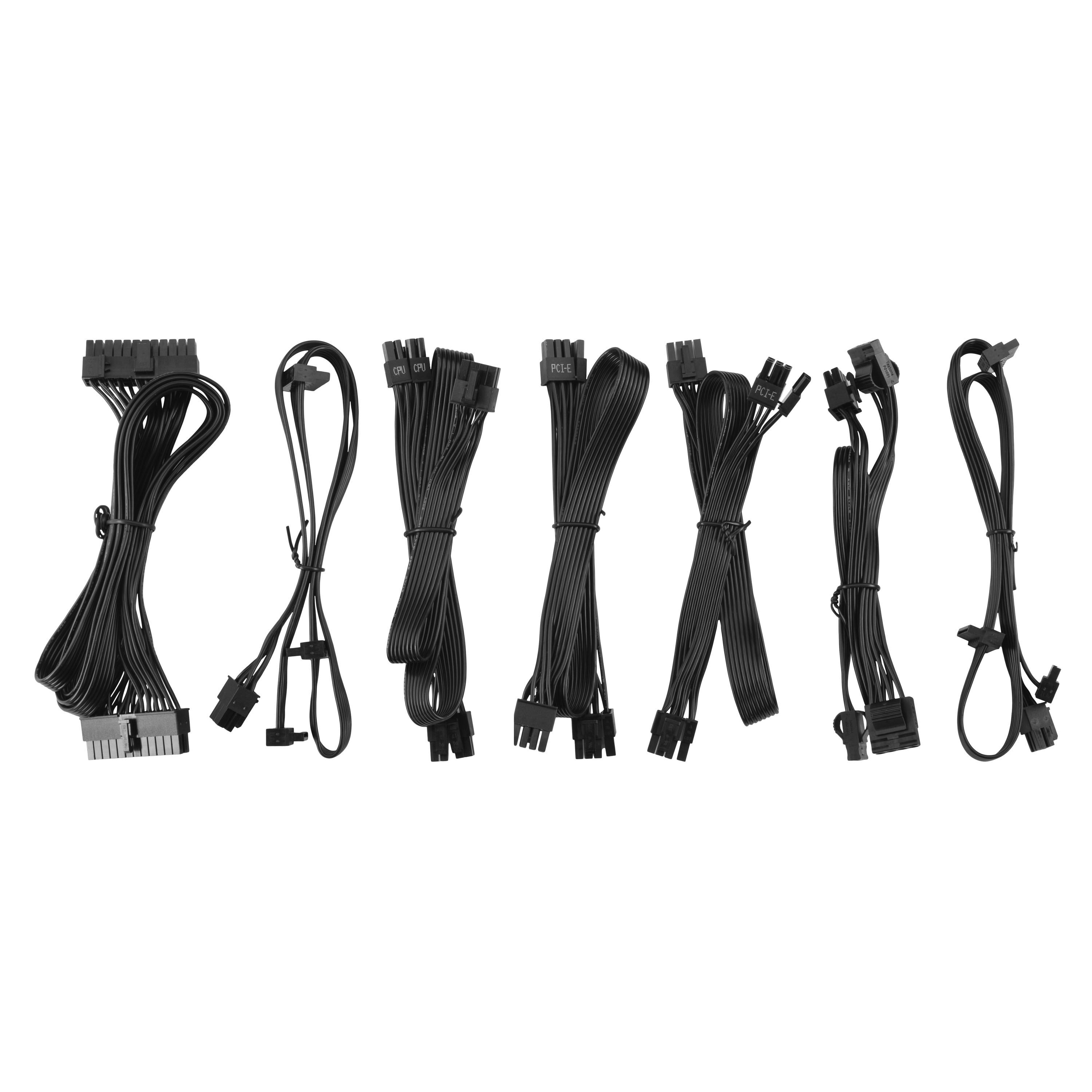

Connectors

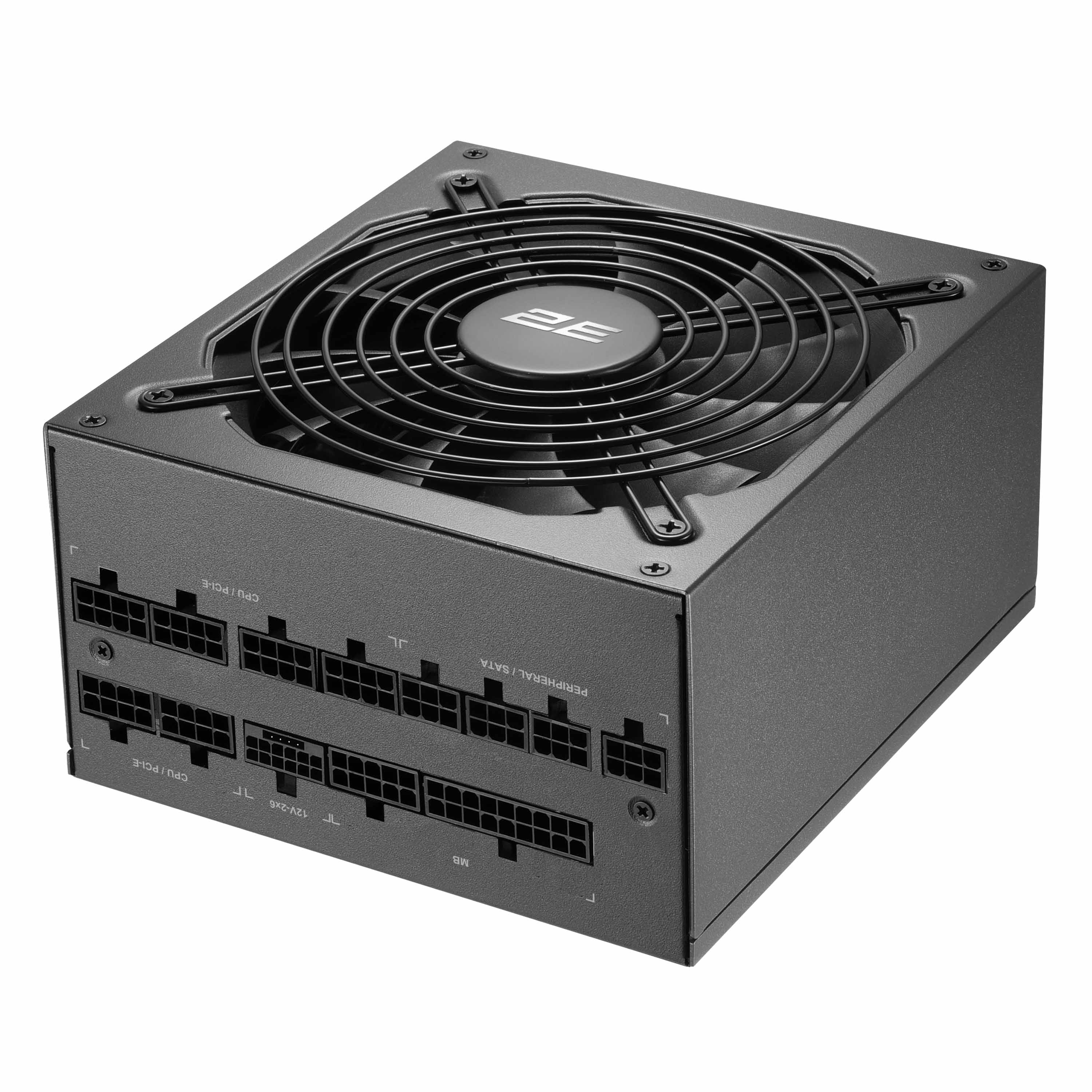

1 x 12+4 Pin PCI-E Gen 5.1 600 mm / 1 x MB 24(20+4) pin, 550 mm / 2 x CPU 8(4+4) pin, 700mm / 6 x PCI-E 8(6+2) pin, (550+150mm)*2, (550mm)*2 / 9 x SATA, (500+150+150mm)*3 / 3 x Molex, 500+150+150mm

Additionally

Security

OVP (Overvoltage Protection) / SCP (Short-Circuit Protection) / OPP (Over Power Protection) / OTP (over temperature protection) / UVP (Undervoltage Protection) / OCP (Over Current Protection)

Certificates

CE / CB / EAC / RoHS

Physical

Dimensions (HxWxD )

86 x 140 x 150
Length of cable

1.2/EU

The weight

3.06 kg
